ÀεðÄÉÀÌÅÍ[ÄÁÆ®·Ñ·¯, Pine-View]

¢Ã ÀεðÄÉÀÌÅÍ[ÄÁÆ®·Ñ·¯, Pine-View]

- Multi input system(Input signal : T/C,RTD,DC mV, DC mA)
- The accuracy of DC type is F.S.0.2% full sacale.
- Display : LED 5digits
- All meters have sensor compensation function built in.
- Measurement value Hold function.
- 16 bit A/D Converter.
- Dead band setting function.
- Output Signal ( Option ) : Relay (Max 4P),4-20mA,RS-232/422/485
(PINE VIEW,pine view)



MODEL

Pine-View

Input

T/C(B,R,S,K,E,J,T,N-Type)

RTD(DIN PT100§Ù/JIS PT100§Ù)

DC¡¾50.0mV, DC¡¾5.0V

DC¡¾20.0mA(4~20mA)

Sampling Time

mV, V, mA-100msec

T/C, RTD-200msec

Input Resistance

Volt type : 400 K§Ù

mA type : 250 K§Ù

Other : 1 M§Ù

NMRR/CMRR

50dB ÀÌ»ó / 140dB ÀÌ»ó

Isolation Resistance

100 M§Ù(Based on DC 500V)

Isolation Voltage

AC 200V 50/60Hz for 60 seconds

Working Temp.

-5 ~ 60 ¡É

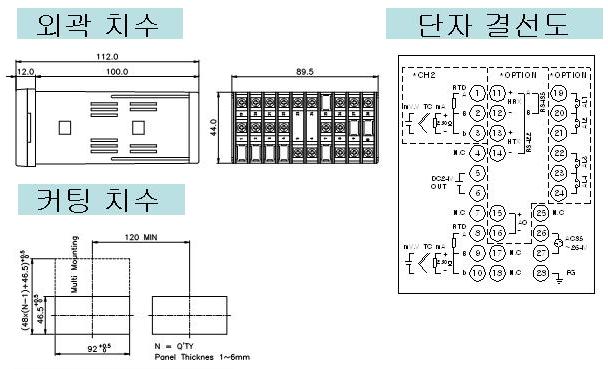

Size

96(W)*100(D)*48(H) mm

Display

7 segments LED

Relay Output

Relay 2P(AC 250V/5A, DC 30V/5A)

Power

AC 85 ~ 264V ¡¾10%(50/60Hz)

DC 18 ~ 30V(Order made)
