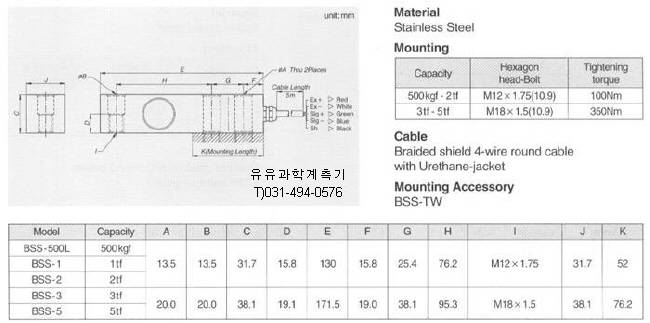

로드셀[BSS] |
|
- Stainless steel construction
- OIML C3 approved(OIML R60)
- Protection class IP67
OPTIONS
- OIML C3 approved
- Ex s II T4 approved (bss)
|
|
|
|
- Max. capacity .............................. 500kgf, 1tf,2,3,5tf
- Rated output ................................ 2.0+-0.005mV/V
- Zero balance ................................ 0+-0.02mV/V
- Combined error ............................ 0.025%R.O.
- Repeatability ................................ 0.01%R.O.
- Creep for 30min ............................ 0.017%R.O.
- Temperature ceffect on
..Zero Value .................................. 0.014%R.O./10'C
..Output Value ................................ 0.011%R.O./10'C
- Excitation
..Recommended ............................. 10V
..Maximum .................................... 15V
- Resistance
..Input ........................................... 350+-3.5(ohm)
..Output .......................................... 350+-3.5(ohm)
- Compensated temperature range .... -10 to +40'C
- Operating temperature range .......... -30 to +80'C
|
|
|
|
 |
|
|
|
|
|
|
|
|
|
|
|
|
|
)
