로드셀[BCL6Kg_50Kg]

▣ 로드셀[BCL 6Kg~50Kg]

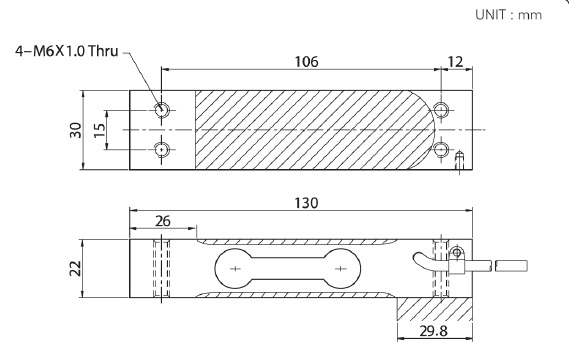

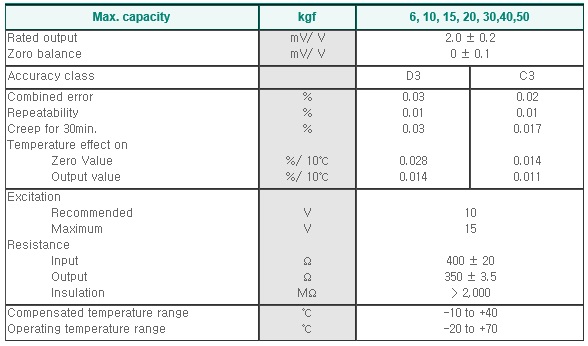

BCL Single point load cell, 6kgf - 50kgf

⊙FEATURES
- Low cost
- Low-profile
- PTB and OIML C3 approved(OIML R60)
- Off center compensated(OIML R76)
- Protection class IP65

⊙OPTIONS
- 6-wires connection
- OIML C3 approved

⊙Material
- Anodized Aluminum

⊙Mounting
- Socket-head cap screw M6 1.0(10.9)
- Tightening torque: 14Nm

⊙Cable
- Braided Shield 4-wire round cable
- with PVC-Jacket

⊙Maximum Platform Size
- 300 300mm

⊙Ordering Information
- BCL - XXL
(BCL,bcl)
